BULG-100-DNE-B-3C
x 1.0

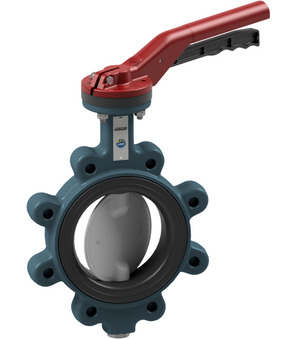

butterfly valve with bare shaft BULG-100-DNE-B-3C
butterfly valve with bare shaft series BUL-B-3C; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc aluminium-bronze; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; DN 100mm; length 52mm; pressure range 0...16bar; nominal flange pressure PN10/16; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness
