STASTO Allgemeine Preisliste (EUR)
Other materiales - A03 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Other materiales - A03
  6. BA851-112-D0

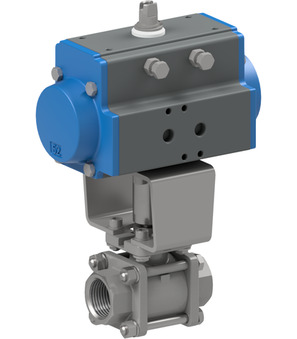

BA851-112-D0

BA851-112-D0

Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PEEK/FFKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+250°C; RP 11/2"; Nominal diameter 40mm; Pressure range 0-25bar; Length 116mm; Actuator PAD075-H

Intrastat No.: 84818081
Country of origin: Italy
Short Itemnumber: BA851112D0
https://www.stasto.eu/web/image/product.template/221855/image_1920?unique=fb2cd3f

Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PEEK/FFKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+250°C; RP 11/2"; Nominal diameter 40mm; Pressure range 0-25bar; Length 116mm; Actuator PAD075-H

1.003,20 € 1003.2 EUR 1.003,20 €

price on request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    Ball valve made of stainless steel BA851-114-L
    BA851-112-L x 1.0
    Ball valve made of stainless steel BA851-114-L
    Ball valve made of stainless steel; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Stem 1.4542; Seals PEEK/FFKM; Medium temperature -20...+250°C; RP 11/2"; Nominal diameter 40mm; Pressure range 0-25bar; Length 116mm
    Add to Cart
    Pneumatic actuator PAD075-H
    PAD075-H x 1.0
    Pneumatic actuator PAD075-H
    Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm
    Add to Cart
