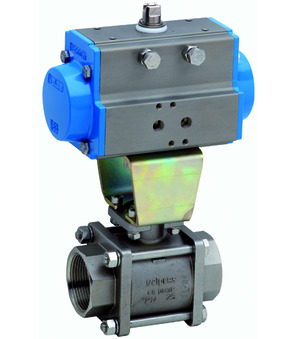

Ball valve with pneumatic actuator BA673-12-D0
ball valve with pneumatic actuator series BA673; female thread; body, ball AISI 316; seals PTFE-fibre-glass-reinforced/EPDM; compensation hole; double acting actuator; control pressure 5,5...8bar; medium temperature -30...+160°C; RP 1/2"; nominal diameter 15mm; pressure range 0...64bar; length 65mm; actuator PAD032
Weight: 1.16 Kg
Short Itemnumber: BA67312D0
ball valve with pneumatic actuator series BA673; female thread; body, ball AISI 316; seals PTFE-fibre-glass-reinforced/EPDM; compensation hole; double acting actuator; control pressure 5,5...8bar; medium temperature -30...+160°C; RP 1/2"; nominal diameter 15mm; pressure range 0...64bar; length 65mm; actuator PAD032
This product is no longer available.
| dimension | |
|---|---|
| Female thread | RP 1/2" |
| DN | 15 mm |
| Length | 65 mm |
| pressure | |
| Pressure range | 0...64 bar |
| characteristics | |
| Actuator | PAD032 |
No spare parts are available for this product.
