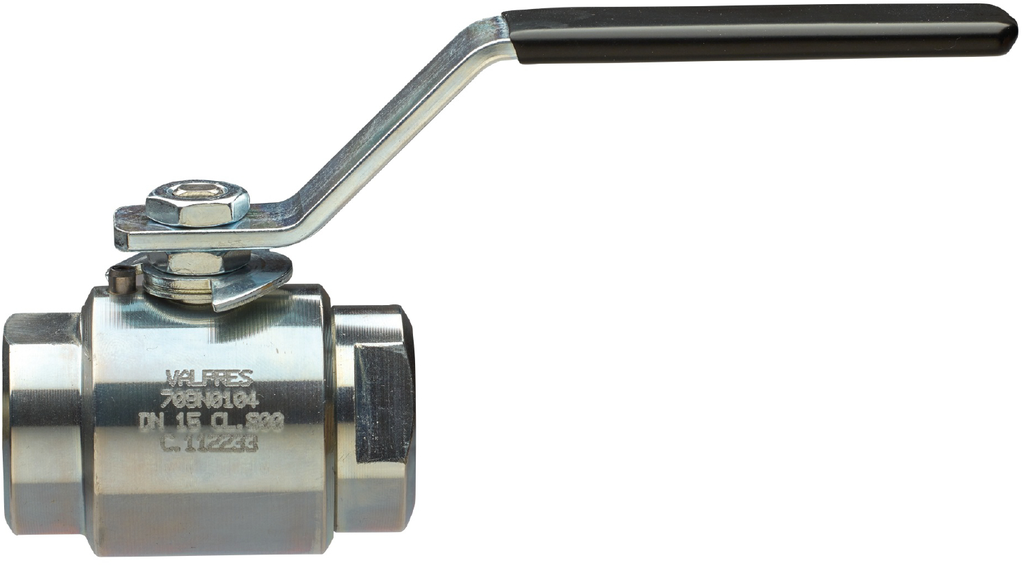

Ball valve made of stainless steel BA469-34-L-A3C
Ball valve made of stainless steel Series BA469-L-A3C; Full bore; Two-parts type; Female thread; Body, Ball 1.4404; Seals PTFE Reinforced with carbographite; Medium temperature -20...+160°C; Connection RP 3/4"; Nominal diameter 20mm; Class 800; Pressure range 0...138 bar; Length 90mm; Antistatic design; Fire-Safe; ATEX II 2 G/D c T3; Free of oil and grease; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness
Country of origin: Italy
Weight: 1.5 Kg
Short Itemnumber: BA46934LA3C
ball valve made of stainless steel series BA469-L-A3C; full bore; two-parts type; female thread; body, ball AISI 316L; seals PTFE reinforced with carbographite; medium temperature -20...+160°C; connection RP 3/4"; nominal diameter 20mm; Class 800; pressure range 0...138 bar; length 90mm; antistatic design; Fire-Safe; ATEX II 2 G/D c T3; free of oil and grease; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness
| dimension | |
|---|---|
| Female thread | RP 3/4" |
| DN | 20 mm |
| Length | 90 mm |
| design | |
| Design | ATEX |
| pressure | |
| Pressure range | 0...138 bar |
