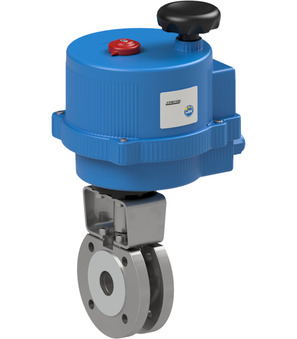

Flanged ball valve with electrical actuator BA049-50-0L-02

Name: Flanged ball valve with electrical actuator BA049-50-0L-02
Brand: STASTO
SKU: BA049-50-0L-02

Sampling-ball valve flange with electrical actuator; PN16; body, ball AISI 316; seals PTFE/FKM; medium temperature -20...+160°C; DN 50mm; pressure range 0-16bar; length 82mm; operating time 9s; voltage 24VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Short Itemnumber: BA049500L02

On request

DN
- 50 mm
Length
- 82 mm
Voltage
- 24VAC/DC
Pressure range
- 0...16 bar
Actuator
- VB060L
Operating time
- 9 s

This combination does not exist.

Availability:

Specifications
Spare Parts

dimension
DN	50 mm
Length	82 mm
Electrical key figures
Voltage	24VAC/DC
pressure
Pressure range	0...16 bar
characteristics
Actuator	VB060L
Operating time	9 s

BA049-50-L-03 x 1.0

Flanged ball valve BA049-50-L-03

Sampling-ball valve flange PN16; body, ball AISI 316; seals PTFE/FKM; pressure range 0...16bar; medium temperature -20...+160°C; nominal diameter 50mm; length 82mm

Add to Cart

VB060-L x 1.0

Electrical actuator VB060-L

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 14 mm; Voltage 24VAC/DC; Protection class IP67

Add to Cart

RI3002 x 1.0
