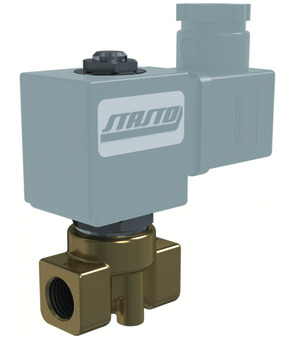

2/2-way solenoid valve 21A2ZV30-BDA08380DS-C003-32-6
21A2ZV30
2/2-way solenoid valve series 21A; directly operated; NO; body brass; tube stainless steel one-piece; seal FKM; medium temperature -10...+120°C; connector size 32mm; G 1/4"; DN 3mm; pressure AC/DC 0-10bar; length 40mm; standard coil BDA
BDA08380DS
coil type BDA; standard; connector size 32mm; voltage 380V/50-60Hz
C003-32-6
connector; connector size 32mm; Standard; voltage 0...250VAC/DC
Weight: 0.41 Kg
Short Itemnumber: 21A2ZV30BDA08380DSC003326
21A2ZV30
2/2-way solenoid valve series 21A; directly operated; NO; body brass; tube stainless steel one-piece; seal FKM; medium temperature -10...+120°C; connector size 32mm; G 1/4"; DN 3mm; pressure AC/DC 0-10bar; length 40mm; standard coil BDA
BDA08380DS
coil type BDA; standard; connector size 32mm; voltage 380V/50-60Hz
C003-32-6
connector; connector size 32mm; Standard; voltage 0...250VAC/DC
This product is no longer available.
| dimension | |
|---|---|
| Female thread | G 1/4" |
| DN | 3 mm |
| Length | 40 mm |
| Designs | |
| Connector size | 32 mm |
| pressure | |
| Pressure AC/DC | 0...10 bar |
| materials | |
| Seal | FKM |
| characteristics | |
| Coil | BDA |
| Medium temperature | -10...+120 °C |
